AR4 Hand Eye Calibration

Performs hand-eye calibration between a camera and the Annin Robotics AR4 robotic arm, and validates calibration results. An Intel RealSense camera is used as an example, but any camera can be substituted. Tested with ROS 2 Iron on Ubuntu 22.04.

The core calibration procedure uses easy_handeye2.

Preparation

Print an Aruco marker and attach it to the end of J6. Aruco marker can be printed using ros2_aruco.

Verify that the Aruco marker parameters in config/aruco_parameters.yaml is correct for your marker.

Note: You may want to 3D print an extra J6 gripper mount for this purpose.

Installation

Clone this repo and ar4_ros_driver in the same ROS workspace. i.e.

mkdir -p ~/ar4_ws/src
cd ~/ar4_ws/src
git clone https://github.com/ycheng517/ar4_ros_driver
git clone https://github.com/ycheng517/ar4_hand_eye_calibration

Import required repos with:

vcs import . --input ar4_hand_eye_calibration/hand_eye_calibration.repos

Install the required drivers and ROS 2 nodes for your camera. For example for Intel RealSense:

sudo apt install ros-iron-librealsense2* ros-iron-realsense2-*

Install dependencies of imported repos:

sudo apt update && rosdep install --from-paths . --ignore-src -y

Calibrate

In one terminal, launch the hardware interface without including the gripper:

ros2 launch ar_hardware_interface ar_hardware.launch.py calibrate:=True include_gripper:=False

In another terminal, launch programs needed for calibration:

ros2 launch ar4_hand_eye_calibration calibrate.launch.py

Using RViz, move the robot end effector such that the Aruco marker is in view of the camera. Then, a calibration GUI should appear on the screen. Use it to take a sample. Then move the end effector to a few different orientations, take a sample at each orientation. When you have 5-6 samples, you can save and exit all programs.

Validate

In one terminal, launch the hardware interface without including the gripper:

ros2 launch ar_hardware_interface ar_hardware.launch.py calibrate:=True include_gripper:=False

In another terminal, launch programs needed for validation:

ros2 launch ar4_hand_eye_calibration validate.launch.py

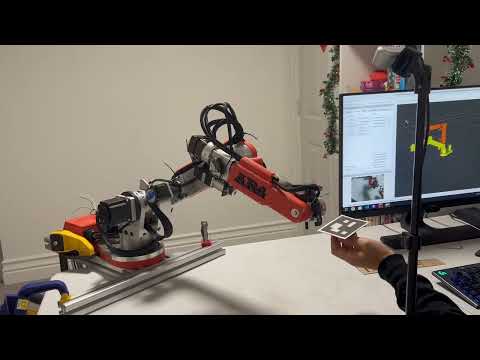

Move an Aruco marker around the camera'a field of view. The robot arm should follow and hover above the Aruco marker.
